8 Bar MAP Sensor EU (MAP8EU) - New Enclosure

MAP Sensor 8 Bar EU SS -1 / +7 Bar Pressure

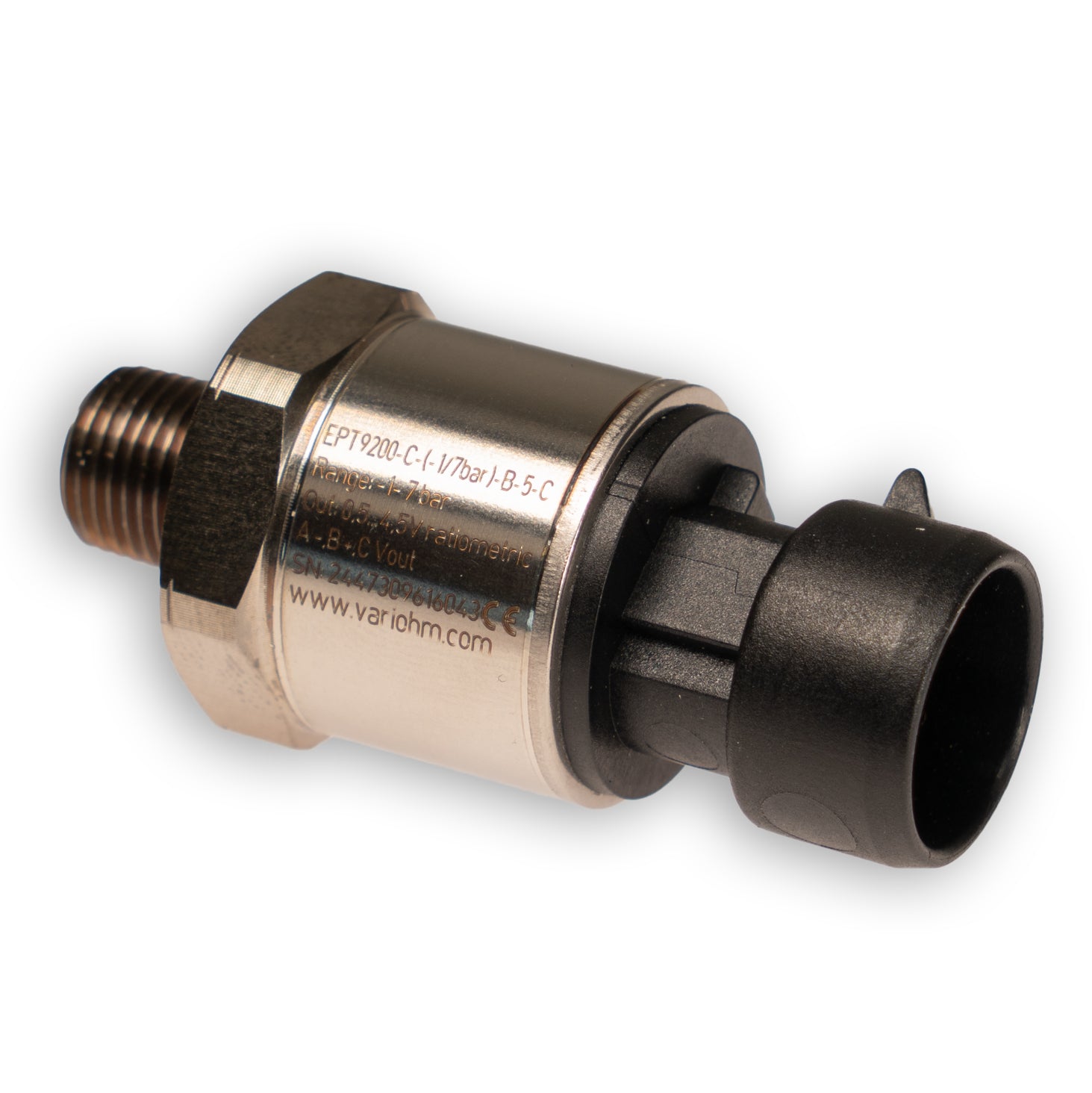

The 8 Bar MAP Variohm Eurosensor reads up to 7 Bar absolute pressure.
This means that it is suitable for turbo or supercharged applications running up to 7 Bar (or 101psi) of boost pressure.

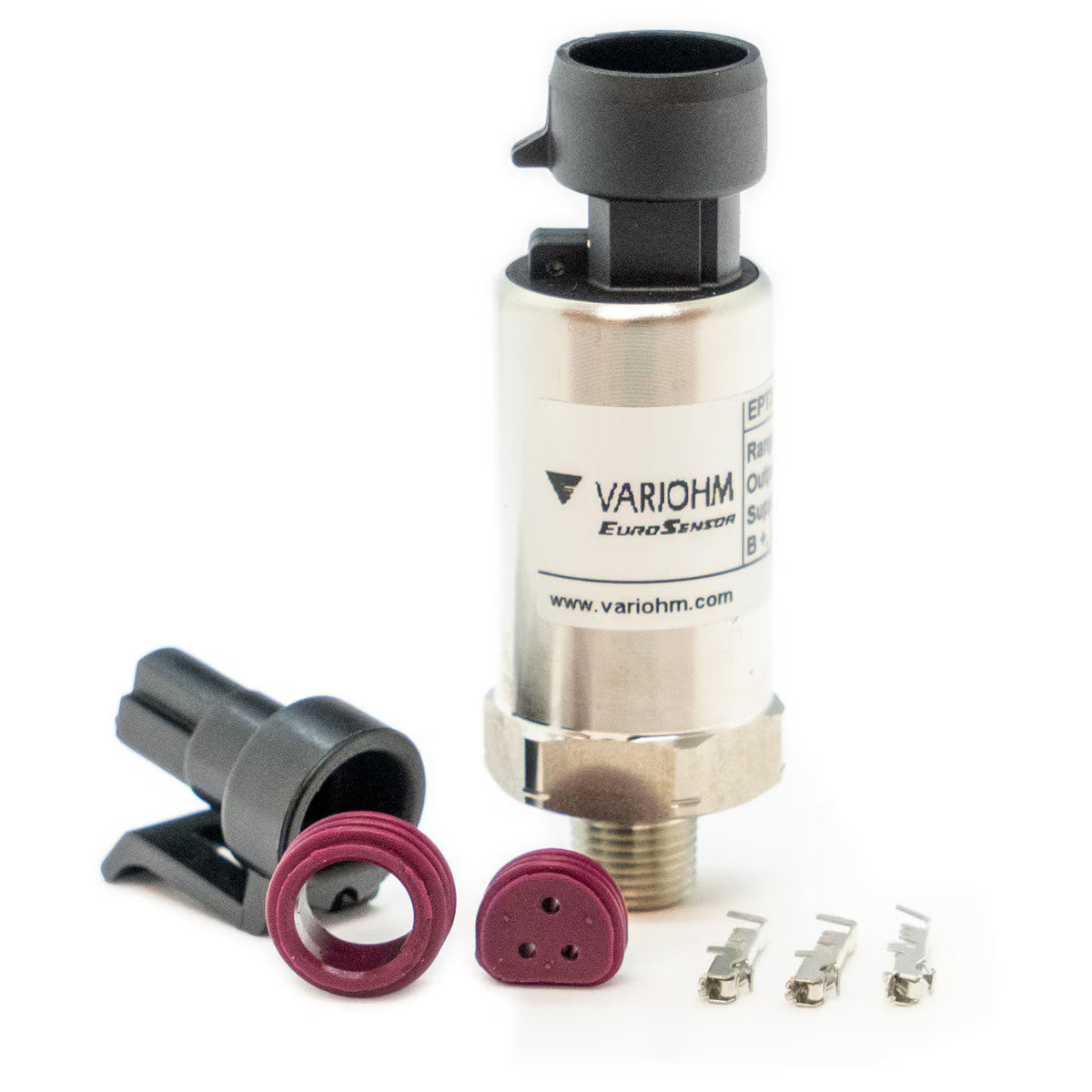

• Includes Plug and Pins
• Push wire through connector; crimp on terminal; pull wire/terminal back into connector
• Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 8 Bar’

Calibration - 0kpa = 0.5v, 800kpa = 4.5v
PIN A = 0v
PIN B = 5v
PIN C = Signal
