Wisefab Nissan R35 GT-R Front Suspension Drop Knuckle Kit

• Higher roll center (RC)
  Our Nissan GT-R front kit brings the RC, bump steer and camber curve into normal range, provides better roll stiffness, handling and grip on a lowered car
• Dual kinematics setup
  Uprights have two attachment points. One is for lowered rideheight with standard 710mm (28“) diameter wheels and second set of points is for either small wheels (that are required by some series rules) with lowered rideheight or for standard wheel with standard ride height.
• Adjustable shock motion ratio
  Shock motion ratio can be adjusted by changing the shocks position on the arm. It can be done quickly and has the effect of changing the springrate. This means that understeer or oversteer can be removed within a few minutes
• CrMo rod ends and sphericals used instead of OEM style bushings
• Quicker steering ratio
  Steering ratio is slightly quicker compared to OEM.
• Easy camber and caster adjustments

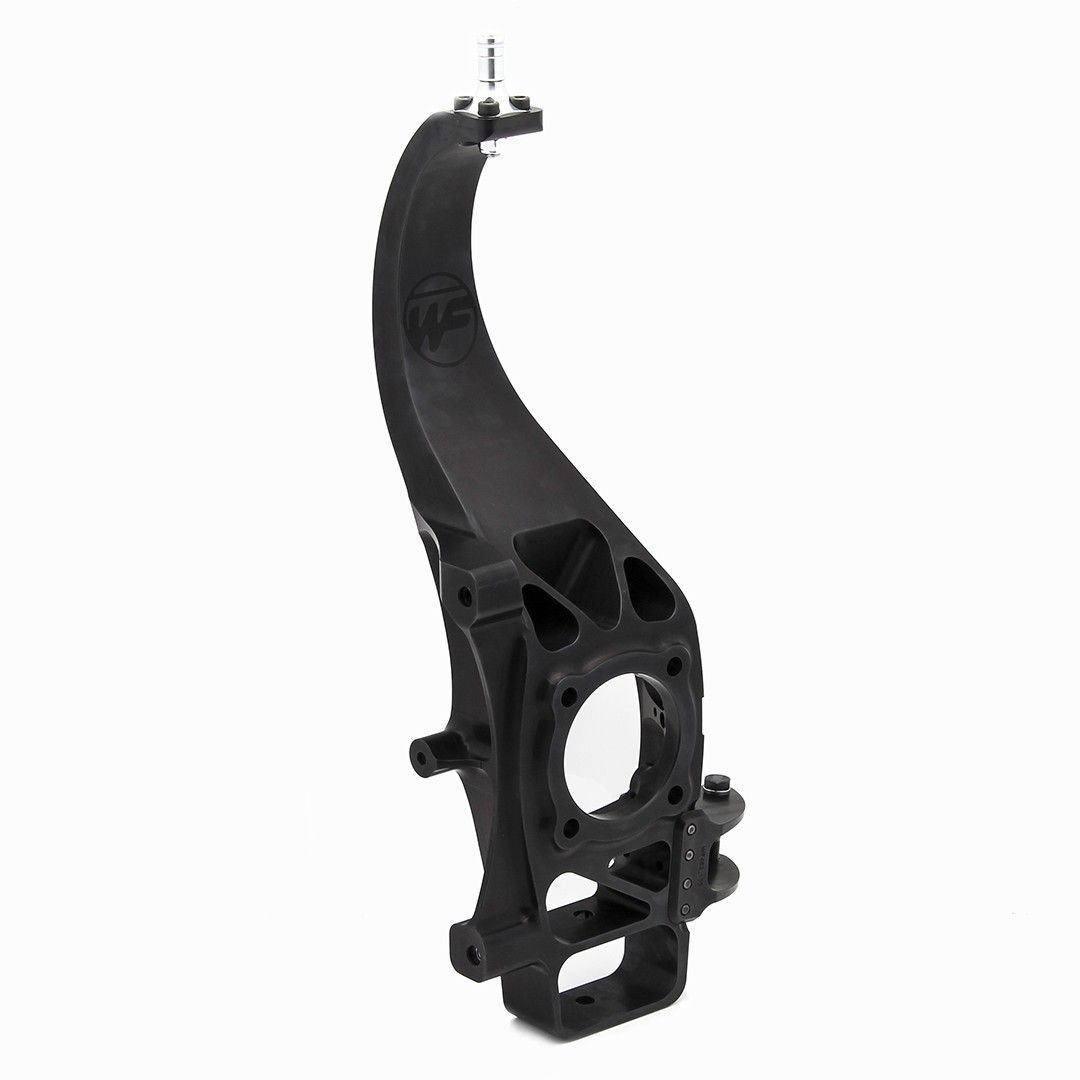

• 7075-T6 aluminium billet CNC knuckles
  With optimized double shear design that provides low weight and high strenght
• Designed for bigger CV joints
  Nissan GT-R R35 CV joints are good to handle big power, but for any case if the power and grip exceed their limits, then the uprights have room for bigger CV joints if needed

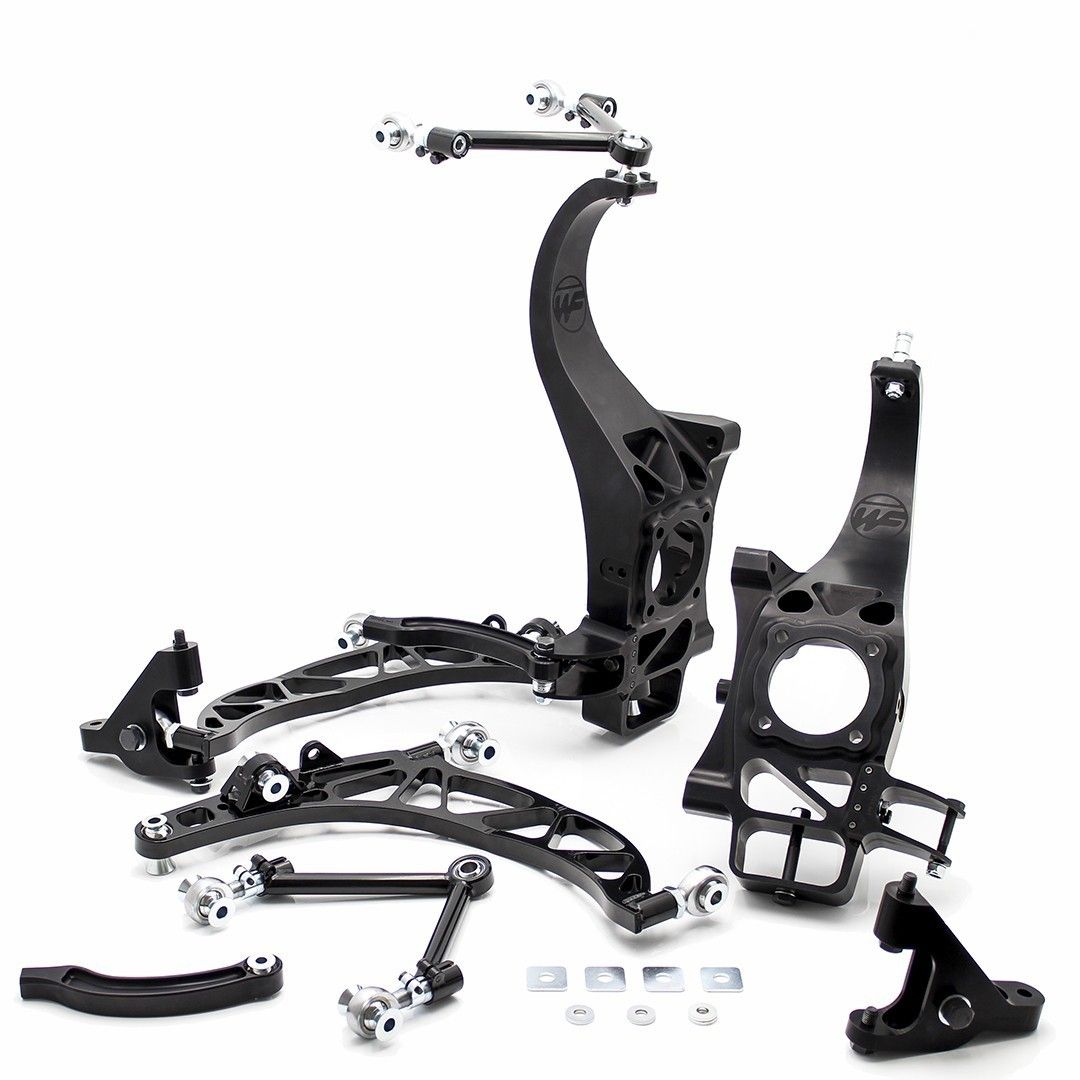

Kit includes:

• Pre-set upper and lower arms
• Knuckles with hardware
• Rearward mounting bracket
• Assembeled tie rods
• Installation guide

Other information

• This kit assumes coilovers
• Original wheel speed sensor can be used
